ABSOLUT

ABSOLUT

¥240,900(本体価格¥219,000)完成車
サイズ:S,M,L

SPECS

Frame MY22 ABSOLUT, 26"
Fork MANITOU Cirucs Expert, 100mm travel, 26", ABS+ damper (compression & rebound), ACT air spring
Headset ACROS ZS44/ZS56
Stem RIDE ALPHA Freeride 40, 40mm, 31.8mm
Bar RIDE ALPHA R35, 31.8mm, 760mm width, 35mm rise
Grips ODI Elite Motion
Brakes SRAM Level, 2 pistons, 160 mm
Bottom Bracket Threaded Euro
Cranks BMX 3-pcs, 170mm
Chainring 28t
Chain KMC Z1-BUBU
Cassette NOVATEC, 11t
Rims ALEXRIMS FR30, 26", 32h, 23mm inner width
Hubs Front : NOVATEC DH61SB-HL, 32h / Rear : NOVATEC D256SBT, 32h
Spokes SAPIM Leader
Front Tire MAXXIS DTH, 26"x2.3", 60TPI, TubeType
Rear Tire MAXXIS DTH, 26"x2.3", 60TPI, TubeType
Seatposts RIDE ALPHA, 31.6mm, 250mm length
Saddle COMMENCAL
Accessories Mechanical front brake
Sizes S, M, L
Colors Keswick Green Shiny

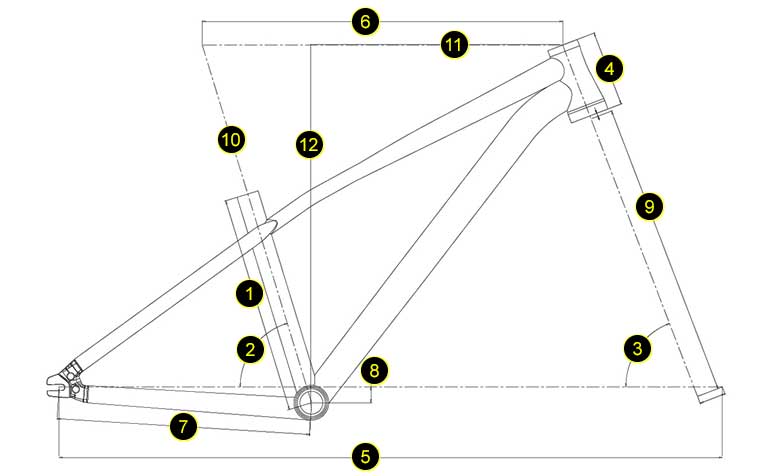

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 310 72 69 120 1037 577 390 -25 470 672 395 566 155~170
M 310 72 69 120 1057 597 390 -25 470 672 415 566 165~185
L 310 72 69 120 1082 622 390 -25 470 672 440 566 175~195
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
