CLASH

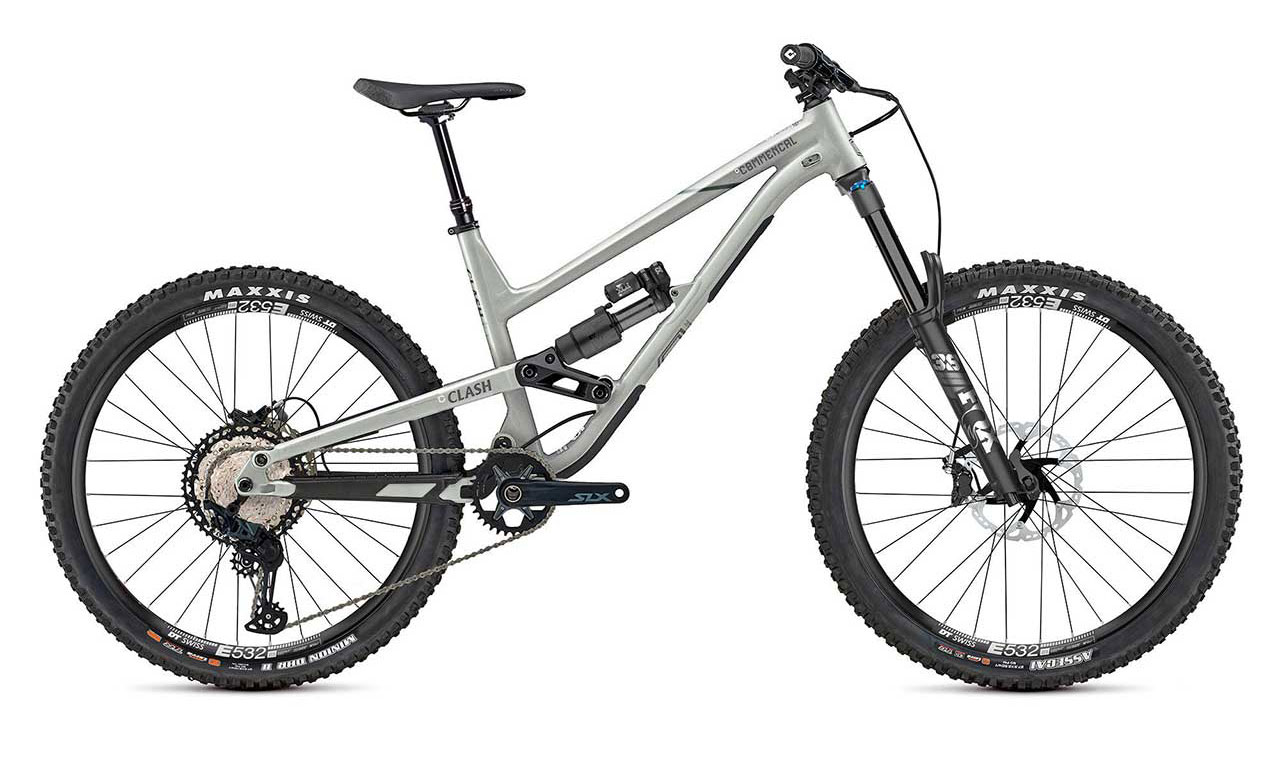

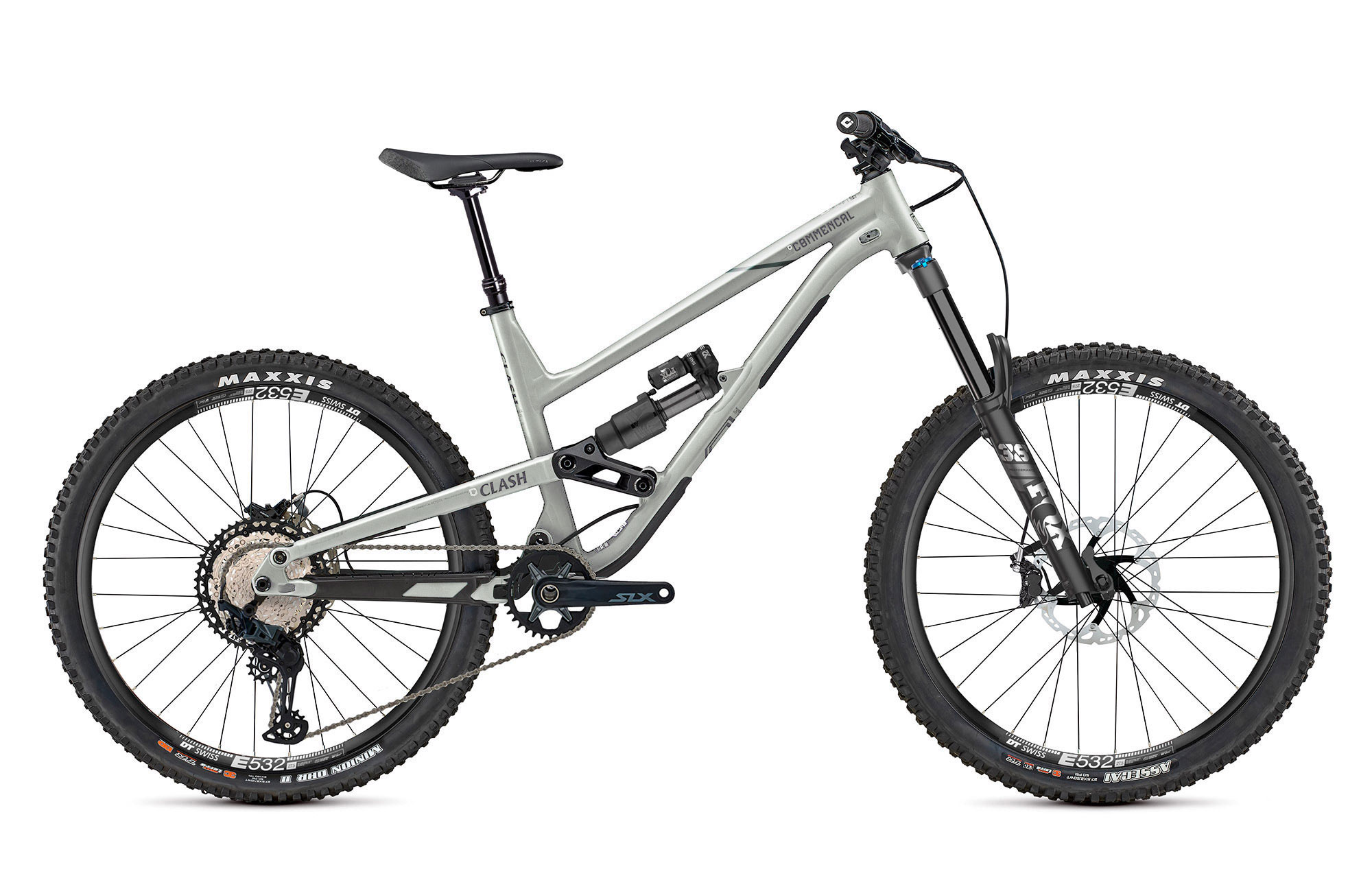

CLASH ESSENTIAL

¥768,900(本体価格¥699,000)完成車
サイズ:S, M, L
Ash Gley サムネイル
Keswick Green Shiny サムネイル
Dark Slate Matte サムネイル

SPECS

Frame MY22 CLASH, 170mm travel, 27.5"
Shock FOX Float X2 Performance, 230x65mm, rebound, compression, 2-pos adjustment
Fork FOX 38 Performance, 180mm travel, Fit Grip damper, 3 positions, rebound, 1 Token
Headset ACROS ZS44/ZS56
Stem RIDE ALPHA Freeride 40, 40mm, 31.8mm
Bar RIDE ALPHA R20, 31.8mm, 760mm width, 20mm rise on S / RIDE ALPHA R27, 31.8mm, 780mm width, 27mm rise on M/L / RIDE ALPHA R27, 31.8mm, 800mm width, 27mm rise on XL
Grips ODI Elite Motion
Brakes SHIMANO SLX, 4 pistons, 203mm
Shifters SHIMANO SLX, 12s
Rear derailleur SHIMANO SLX, 12s
Bottom Bracket SHIMANO BB71-41A, Pressfit
Cranks SHIMANO SLX, 170mm
Chainring SHIMANO SLX, 34t
Chain SHIMANO SLX, 12s
Cassette SHIMANO SLX, 12s, 10-51t
Rims DT SWISS E532, 27.5", 32h, 30mm inner width
Hubs Front : FORMULA DC-711, 32h / Rear : FORMULA MSL-148A, 32h
Spokes SAPIM Race
Front Tire MAXXIS Assegai, 27.5"x2.5", Wide Trail, 3C MaxxGrip, EXO+, Tubeless Ready
Rear Tire MAXXIS DHR II, 27.5"x2.4", Wide Trail, 3C MaxxTerra, EXO+, Tubeless Ready
Seatposts KS Rage-I, 34.9mm, 125mm travel on S, 150mm on M, 170mm on L, 190mm on XL
Saddle FIZIK Terra Alpaca X5
Accessories Down tube protector, chainstay protector, seatstay protector, shuttle pad
Sizes S, M, L, XL
Colors Ash Gley, Keswick Green Shiny, Dark Slate Matte

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 77.2 64 110 1216 586 434 -12 572 728 445 619 162~175
M 418 77.2 64 115 1238 607 434 -12 572 733 465 624 172~185
L 440 77.2 64 120 1265 633 434 -12 572 730 490 628 182~195
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
