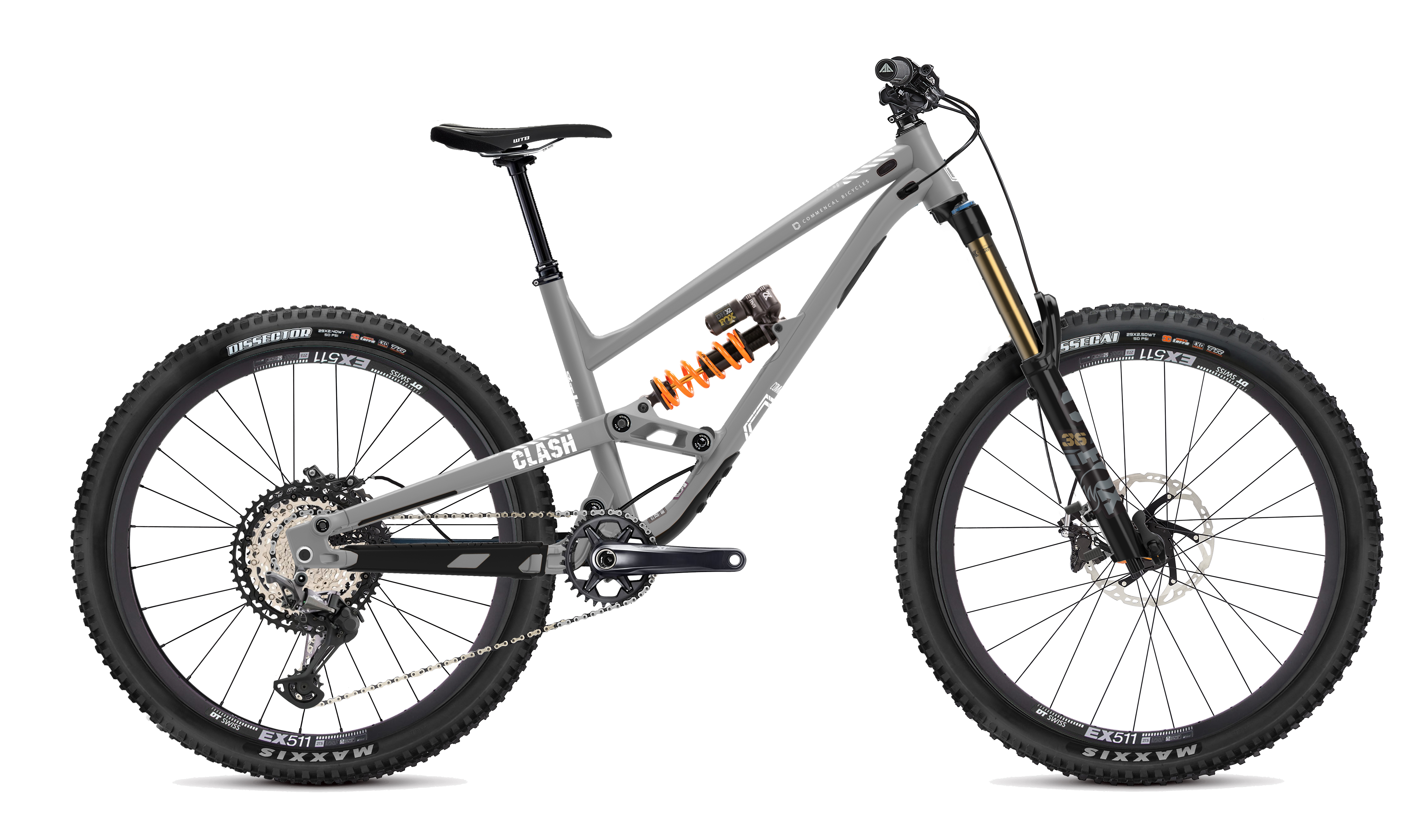

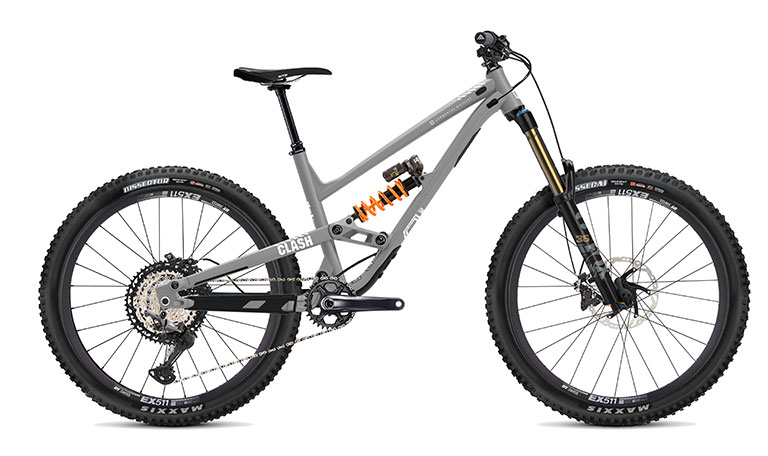

CLASH

CLASH SIGNATURE

¥879,780(本体価格¥799,800)完成車
サイズ:S, M, L, XL

SPECIFICATIONS

Frame 2021 CLASH, 170mm travel
Shock FOX DHX2 Factory, Neutral Stickers
Fork FOX 38 Factory Fit Grip2, 180mm
Headset ACROS, Alloy cups ZS44/ZS56
Stem RIDE ALPHA Freeride, 40mm
Bar RIDE ALPHA, 27mm rise, 780mm, 31.8mm
Grips RIDE ALPHA, DH Grips, black
Brakes SHIMANO XT 4 Pistons, 203mm
Shifters SHIMANO XT, 12sp
Rear derailleur SHIMANO XT, 12sp
Bottom Bracket SHIMANO Pressfit
Cranks SHIMANO XT, 170mm
Chainring SHIMANO XT, 34t
Chain SHIMANO XT, 12sp
Cassette SHIMANO XT, 12sp, 10-51t
Wheels DT SWISS EX 511 / DT 350 / DT Comp Spokes, custom wheelset
Front Tire MAXXIS Assegai, 27.5x2.50WT, 3C, EXO+, TR
Rear Tire MAXXIS Dissector, 27.5x2.40WT, 3C, EXO+, TR
Seatposts KINDSHOCK Lev Integra, 34.9mm
Saddle FABRIC Scoop Flat Elite
Accessories Down tube protector, chainstay protector, seatstay protector, pick-up pad
Sizes S/M/L/XL
Colors Matte Graphite

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 77.2 64 110 1216 586 434 -12 572 728 445 619 162~175
M 418 77.2 64 115 1238 607 434 -12 572 733 465 624 172~185
L 440 77.2 64 120 1265 633 434 -12 572 730 490 628 182~195
XL 465 77.2 64.5 125 1292 666 434 -12 572 735 520 635 192~205
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
