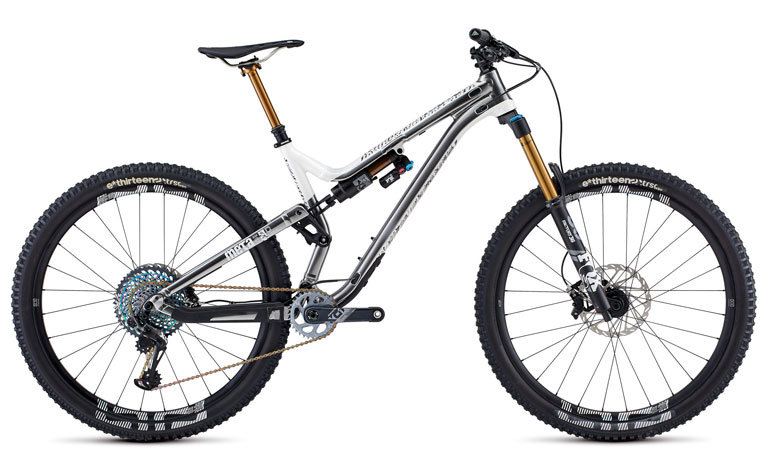

META AM 29 WORLDS

価格(税別)\1,199,800完成車


  • サイズ:S, M. L. XL
Frame 2020 META AM 29 160mm travel
Shock FOX FLOAT X2 FACTORY, 230 x 60 mm, 2positions
Fork FOX 36 FACTORY FIT GRIP2, 170 mm, 15mm axle
Headset ACROS Alloy ZS44/ZS56, sealed bearings,IPS Technology
Stem TRUVATIV DESCENDANT, 40mm length,35mm diameter, black/black
Bar TRUVATIV DESCENDANT DH, 25mm rise,35mm diameter, 800mm, black/black, alloy
Grips RIDE ALPHA, DH Grips, ultra soft compound,single clamp
Brakes SRAM CODE RSC, 200mm/200mm
Shifters SRAM XO1 EAGLE, 1x12sp
Rear Mech SRAM X01 EAGLE, black
Bottom Bracket SRAM DUB, Press Fit BB 92
Cranks SRAM X01 EAGLE DUB, 1x12sp, 32t, 170mm
Chain SRAM XX1 EAGLE, 1x12sp, rainbow
Cassette SRAM XX1 EAGLE, 10-50, 12sp, rainbow
Wheels E13 LG1 EN RACE CARBON WHEELSET, 28 holes, tubeless ready, 30 mm inner width
Tires E 13 TRS A/T RACE Mopo, 29x2.35, Single ply, tubeless ready front & rear
Seatpost FOX TRANSFER FACTORY, 31.6mm
Saddle FABRIC SCOOP FLAT RACE, 142mm width,Vacuum Technology, Alloy-Ti rails
Accessories Down tube protector,chainstay protector,seatstay protector
Sizes S/M/L/XL

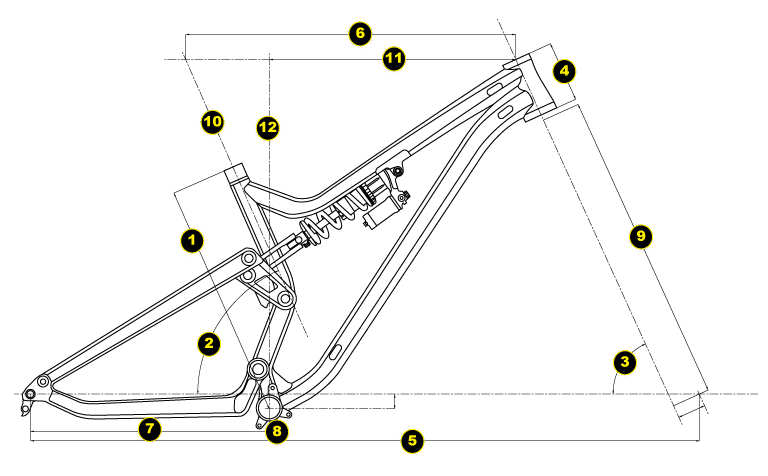

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 400 76.5 65.5 105 1183 573 432 -25 571   423 624.5 151~170
M 440 76.5 65.5 110 1208 596 432 -25 571   445 629 168~180
L 465 76.5 66.5 115 1233 620 432 -25 571   468 633.5 178~190
XL 495 76.5 66 120 1257 644 432 -25 571   491 638 188~210
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
