META TR

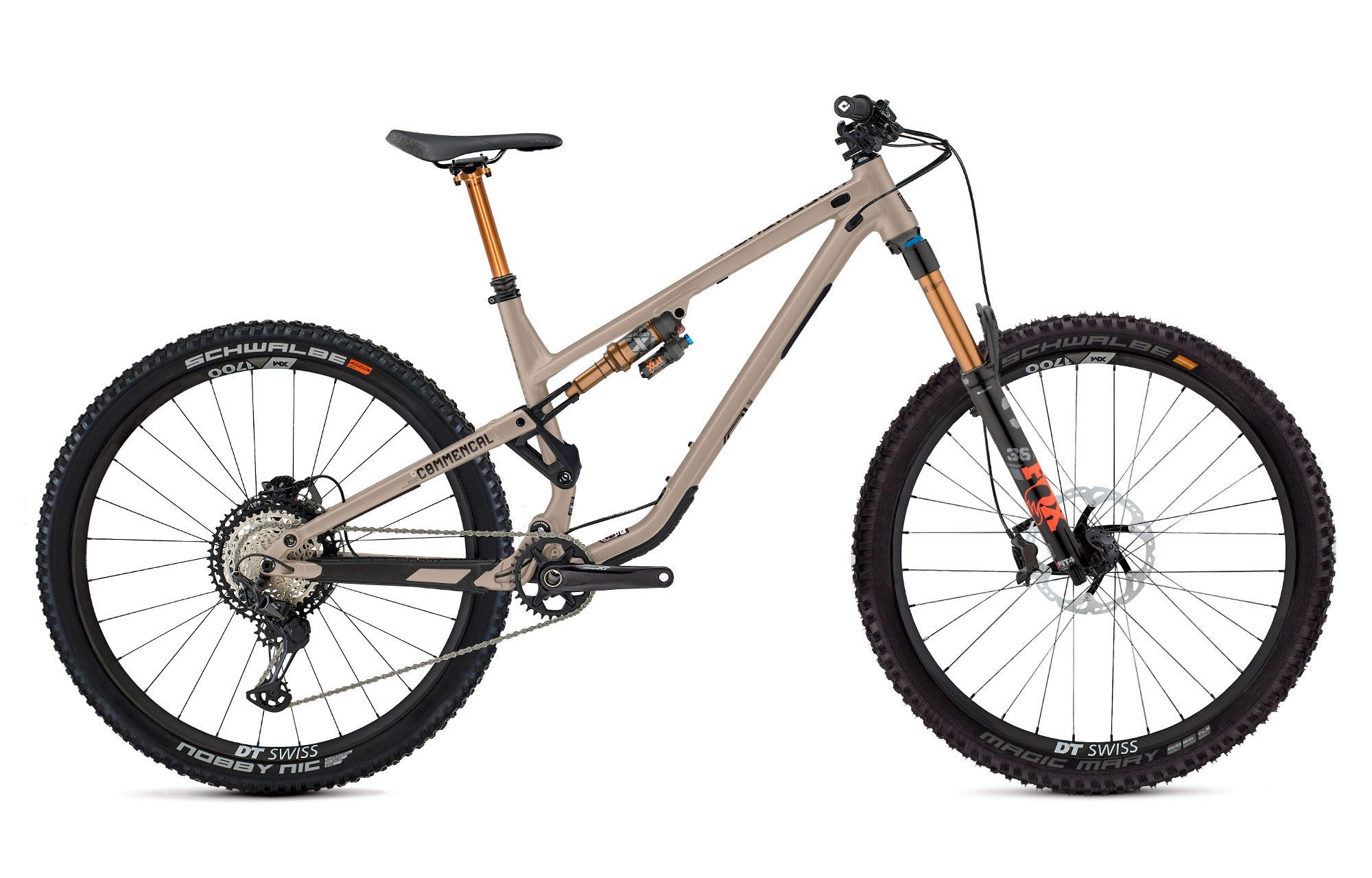

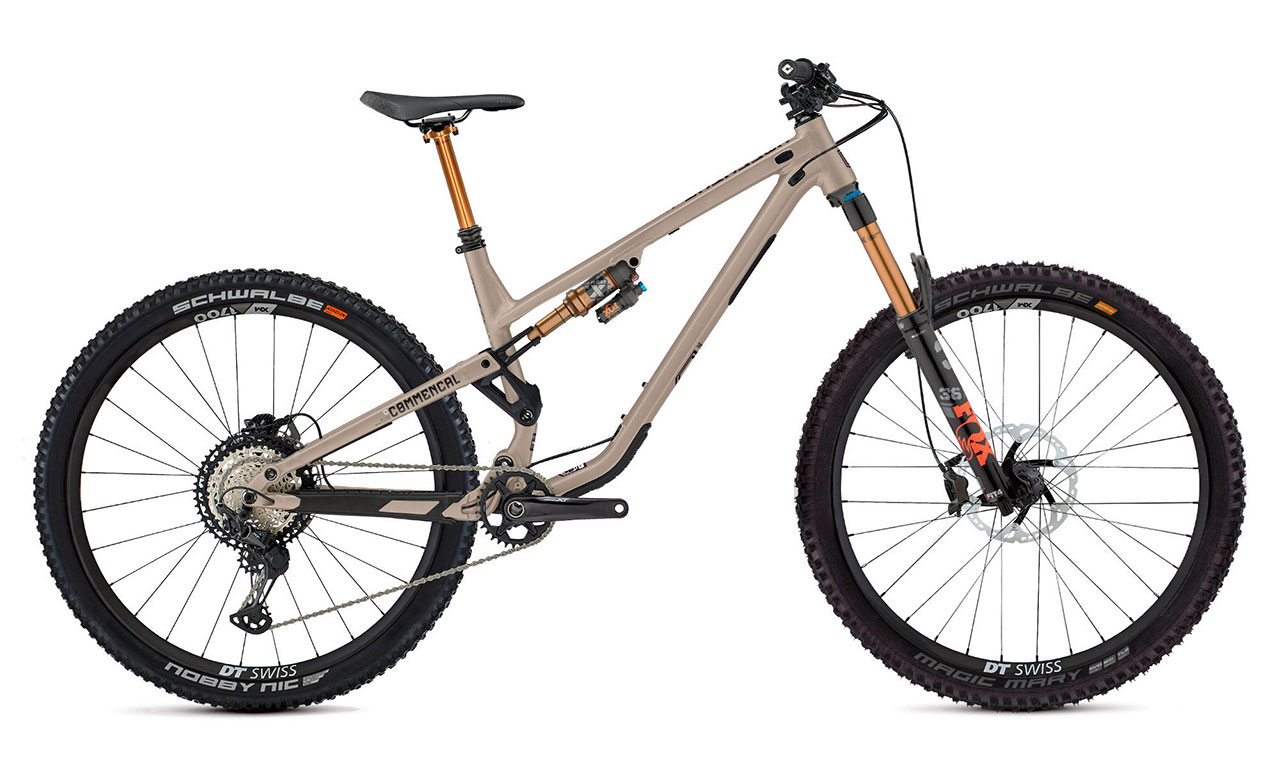

META TR 29 SIGNATURE

¥933,900(本体価格¥849,000)完成車
サイズ:S, M, L

SPECS

Frame MY22 META TR, 140mm travel, 29"
Shock FOX Float X Factory, 210x55mm, HSC, LSC, HSR, LSR, 2-pos adjustment
Fork FOX 36 Factory, 160mm travel, Grip 2 damper, HSC, LSC, HSR, LSR, 1 Token
Headset ACROS ZS44/ZS56
Stem RIDE ALPHA Freeride 40, 40mm, 31.8mm
Bar RIDE ALPHA R20, 31.8mm, 760mm width, 20mm rise on S / RIDE ALPHA R27, 31.8mm, 780mm width, 27mm rise on M/L / RIDE ALPHA R27, 31.8mm, 800mm width, 27mm rise on XL
Grips ODI Elite Motion
Brakes SHIMANO XT, 4 pistons, 203mm
Shifters SHIMANO XT, 12s
Rear derailleur SHIMANO XT, 12s
Bottom Bracket SHIMANO BBMT800, Pressfit
Cranks SHIMANO XT, 170mm
Chainring SHIMANO XT, 32t
Chain SHIMANO XT, 12s
Cassette SHIMANO XT, 12s, 10-51t
Rims DT SWISS XM 1700, 29", 28h, 30mm inner width
Hubs DT SWISS 350, 28h
Spokes DT SWISS Competition
Front Tire SCHWALBE Magic Mary, 29"x2.4", Super Trail, Addix Soft, Tubeless Ready
Rear Tire SCHWALBE Nobby Nic, 29"x2.35", Super Trail, Addix Soft, Tubeless Ready
Seatposts FOX Transfer Factory, 31.6mm, travel: 125mm on S, 150mm on M, 175mm on L, 200mm on XL, seat tube adaptor to 34.9mm
Saddle WTB Terra Alpaca X5
Accessories Down tube protector, chainstay protector, seatstay protector, fork fender Fox 36 specific
Sizes S, M, L, XL
Colors Champagne Matte

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S 380 78.6 64.5 110 1203 566 435 -33 561   440 626 160~172
M 420 78.6 64.5 115 1230 592 435 -33 561   465 630 170~182
L 440 78.6 64.5 120 1257 618 435 -33 561   490 634 180~192
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
