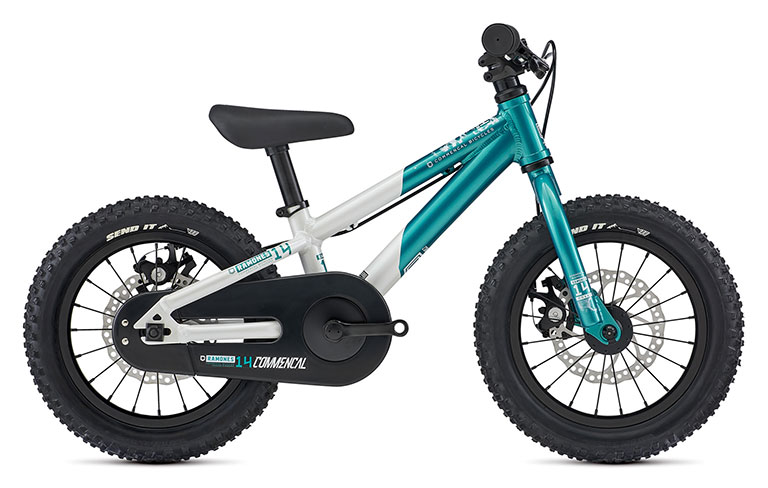

RAMONES 14
税込価格 ¥43,780（税抜価格 ¥39,800）完成車
サイズ：14
サイズ：14
Pearl White/Electroplate Lagoon
Pearl White/Chrome
SPECIFICATIONS
| Frame | Ramones 14, alloy 6061, disc brake ready |
|---|---|
| Fork | Ramones 14, CrMo straight rigid fork |
| Headset | 1-1/8" loose ball |
| Stem | COMMENCAL alloy 0°, 30mm length, 25,4mm diameter |
| Bar | RIDE ALPHA PRODIGY BAR, 480mm width, 25.4mm diameter, 1" rise, 19mm diameter on the grip area (kids hands specific) |
| Grips | COMMENCAL kids, BMX flange, 19mm internal diameter (kids hands specific) |
| Brakes | Mechanical disc brakes with kids specific Tektro levers and Jagwire cables |
| Cranks | Kids 89mm steel, 28t chainring with chaincover |
|---|---|
| Chain | C-410 1/2"x1/8" black singlespeed |
| Cassette | 18t freewheel |
| Rims | COMMENCAL 14" alloy 6063, 20h |
| Hubs | 24 holes, rear hub disc ready |
| Sporks | 2mm steel black - black nipples |
| Tires | VEETIRECO Crown Gem 14x2,25" |
| Seatpost | COMMENCAL, Alloy black, 27.2mm, integrated with saddle |
|---|---|
| Saddle | Kids saddle, w/handle, black |
| Accessories | Bell, lights |
| Colours | PEARL WHITE / ELECTROPLATE LAGOON , PEARL WHITE / CHROME |
GEOMETORY
| SIZE | ① SEAT TUBE LENGTH | ② SEAT TUBE ANGLE | ③ HEAD TUBE ANGLE | ④ HEAD TUBE LENGTH | ⑤ WHEEL BASE | ⑥ TOP TUBE LENGTH | ⑦ CHAIN STAY LENGTH | ⑧ BOTTOM BRACKET HEIGHT | ⑨ FORK LENGTH | ⑩ STANDOVER HEIGHT | ⑪ REACH | ⑫ STACK | Height adaptation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 160 | 71 | 70 | 70 | 617 | 333 | 270 | 45 | 245 | 383 | 216 | 339 | 95~110 |
- 1SEAT TUBE LENGTH
- 2SEAT TUBE ANGLE
- 3HEAD TUBE ANGLE
- 4HEAD TUBE LENGTH
- 5WHEEL BASE
- 6TOP TUBE LENGTH
- 7CHAIN STAY LENGTH
- 8BOTTOM BRACKET HEIGHT
- 9FORK LENGTH
- 10STAND-OVER HEIGHT
- 11REACH
- 12STACK
