SUPREME

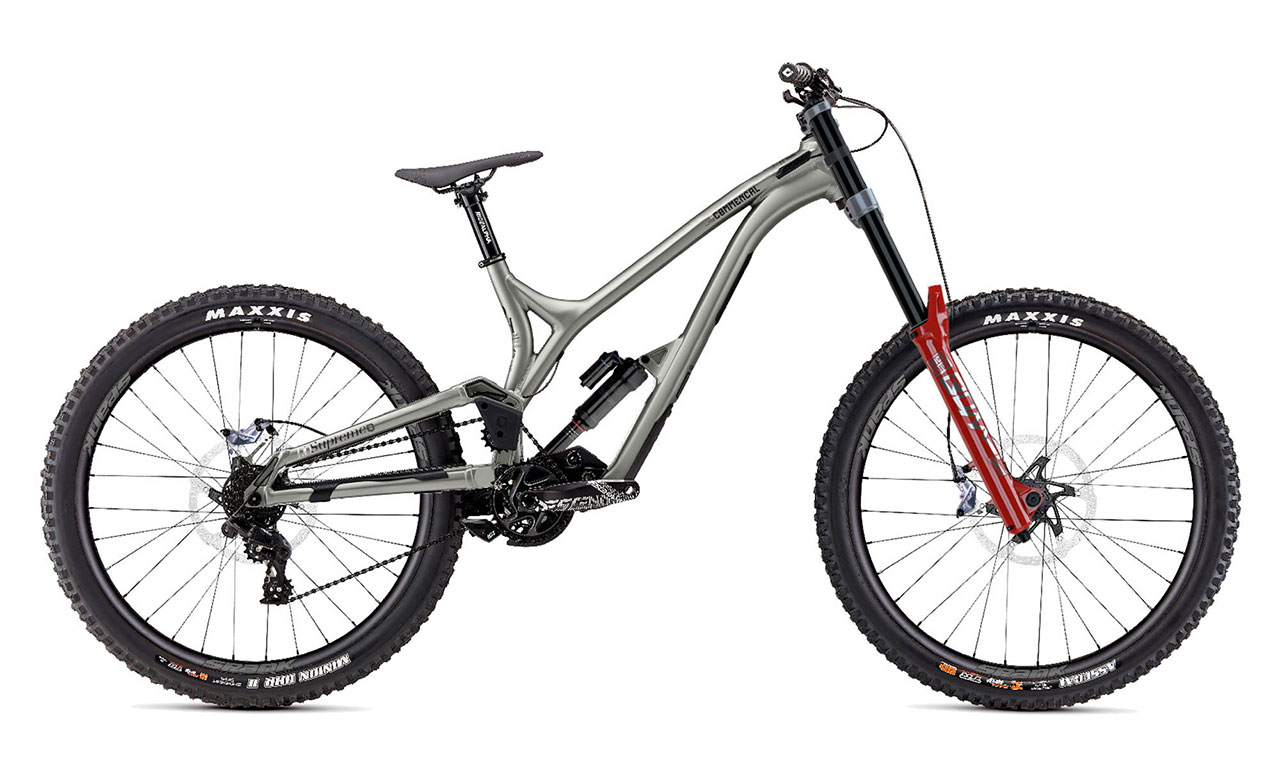

SUPREME DH 27/27 XS

¥878,900(本体価格¥799,000)完成車
サイズ:XS

SPECS

Frame MY22 SUPREME DH, 200mm travel, 27"
Shock ROCKSHOX Super Deluxe Select, 250x75mm, rebound DebonAir, 1 Token
Fork ROCKSHOX Boxxer Ultimate, 200mm travel, Charger 2.1 damper, RC2, DebonAir, rebound, 0 Token
Headset ACROS ZS56/ZS56
Stem RIDE ALPHA DH 40, 40mm, 31.8mm
Bar RIDE ALPHA R20, 31.8mm, 740mm width, 20mm rise
Grips ODI Elite Motion
Brakes TRP DH-R Evo, 4 pistons, 220mm
Shifters SRAM GX DH, 7s
Chainguide E13 LG1 + Bottom Guide, 28-34t
Rear derailleur SRAM GX DH, 7s
Bottom Bracket SRAM DUB, Pressfit
Cranks TRUVATIV Descendant DH, 165mm
Chainring TRUVATIV Descendant DH X-Sync, 34t
Chain KMC X11EL
Cassette SRAM GX DH, 7s, 11-25t
Rims SPANK Spike Race 33, 27.5", 32h, 28mm inner width
Hubs Front : FORMULA DHL-93, 32h / Rear : FORMULA DHG-150, 32h
Spokes SAPIM D-Light
Front Tire MAXXIS Assegai 27.5"x2.5", Wide Trail, 3C MaxxGrip, Double Down, Tubeless Ready
Rear Tire MAXXIS DHR II, 27.5"x2.4", Wide Trail, 3C MaxxTerra, Double Down, Tubeless Ready
Seatposts RIDE ALPHA Super Light, 31.6mm, 250mm
Saddle FIZIK Gravita Alpaca X5
Accessories Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover
Sizes XS
Colors Silver Matte

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
XS 400 66.5 63.0 112 1191 563 425 -5 590 - 405 615 141~160
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
