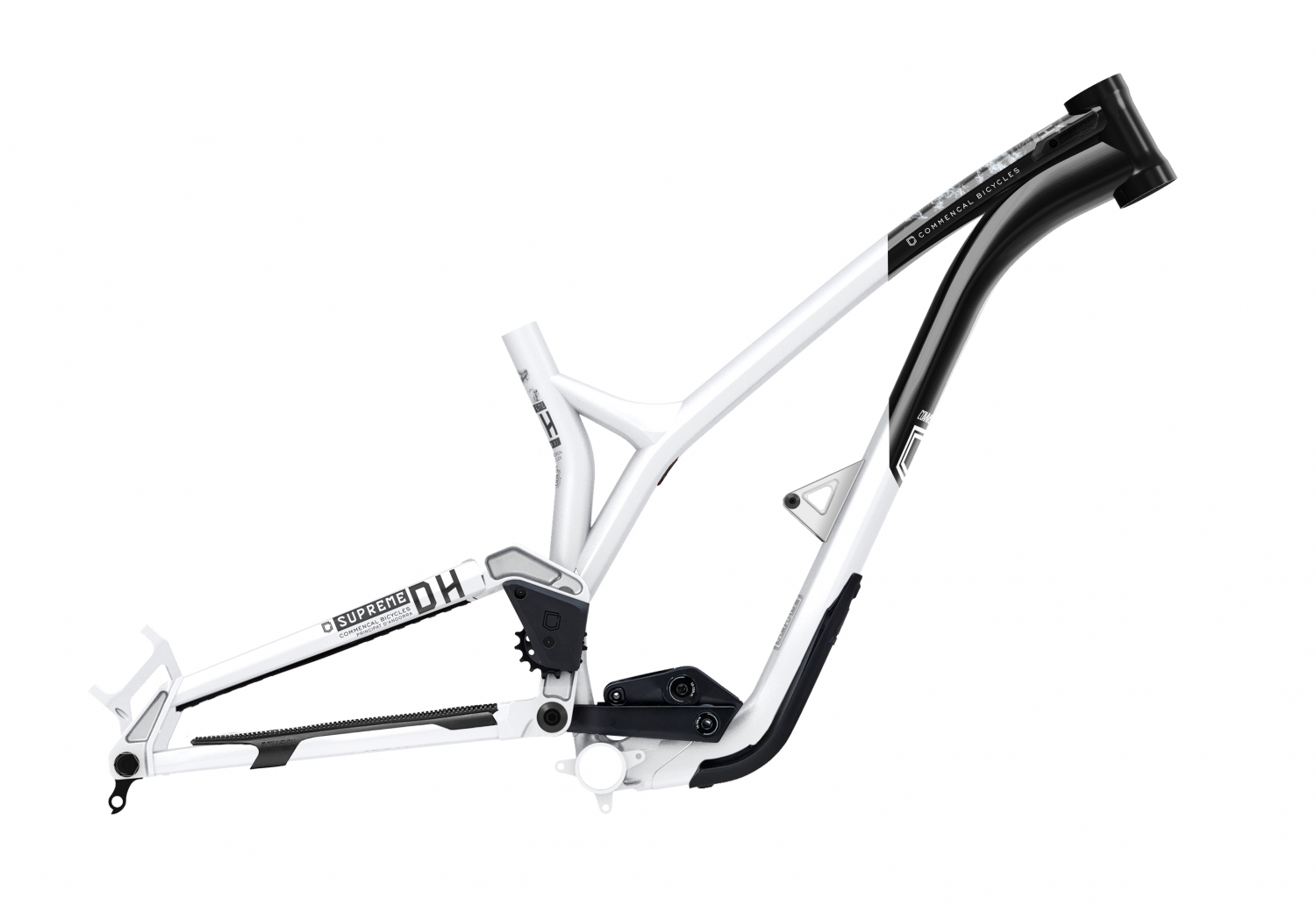

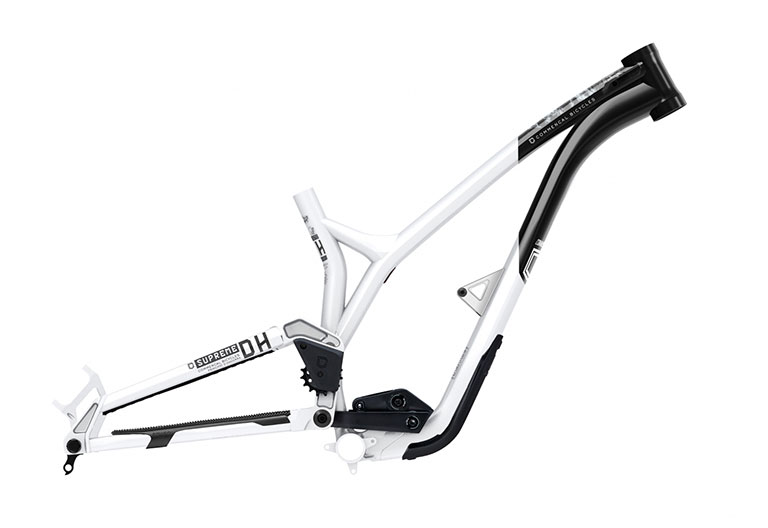

SUPREME DH 27/29 FRAME
Heritage Green / Dark Green, Black & White / 税込価格 ¥373,780（税抜価格 ¥339,800）フレーム
サイズ：S, M, L, XL
サイズ：S, M, L, XL
Heritage Green / Dark Green
Heritage Green / Dark Green
GEOMETORY
| SIZE | ① SEAT TUBE LENGTH | ② SEAT TUBE ANGLE | ③ HEAD TUBE ANGLE | ④ HEAD TUBE LENGTH | ⑤ WHEEL BASE | ⑥ TOP TUBE LENGTH | ⑦ CHAIN STAY LENGTH | ⑧ BOTTOM BRACKET HEIGHT | ⑨ FORK LENGTH | ⑩ STANDOVER HEIGHT | ⑪ REACH | ⑫ STACK | Height adaptation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 400 | 67 | 63.5 | 112 | 1256 | 593 | 448 | -9 | 607 | - | 435 | 624 | 151~170 |
| M | 400 | 67 | 63 | 112 | 1290 | 612 | 456 | -4 | 607 | - | 455 | 620 | 168~180 |
| L | 400 | 67 | 62.5 | 112 | 1320 | 638 | 456 | -4 | 607 | - | 480 | 620 | 178~190 |
| XL | 400 | 67 | 62.5 | 112 | 1345 | 660 | 456 | -4 | 607 | - | 505 | 620 | 188~210 |
- 1SEAT TUBE LENGTH
- 2SEAT TUBE ANGLE
- 3HEAD TUBE ANGLE
- 4HEAD TUBE LENGTH
- 5WHEEL BASE
- 6TOP TUBE LENGTH
- 7CHAIN STAY LENGTH
- 8BOTTOM BRACKET HEIGHT
- 9FORK LENGTH
- 10STAND-OVER HEIGHT
- 11REACH
- 12STACK
