SUPREME DH 29/27 FRAME
High Polished / 税込価格 ¥539,000（税抜価格 ¥490,000）フレーム
Silver Matte, Champagne Matte, Keswick Green Shiny / 税込価格 ¥506,000（税抜価格 ¥460,000）フレーム
サイズ：S, M, L
Silver Matte, Champagne Matte, Keswick Green Shiny / 税込価格 ¥506,000（税抜価格 ¥460,000）フレーム
サイズ：S, M, L

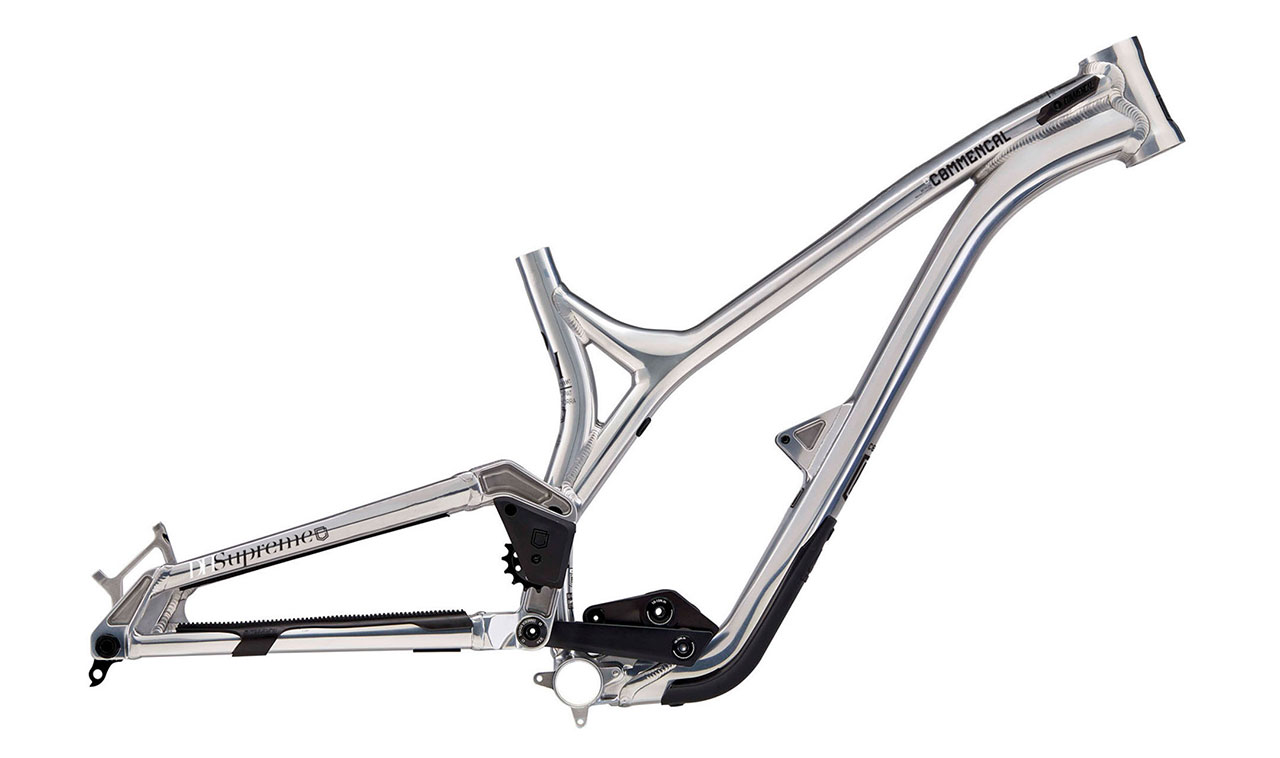

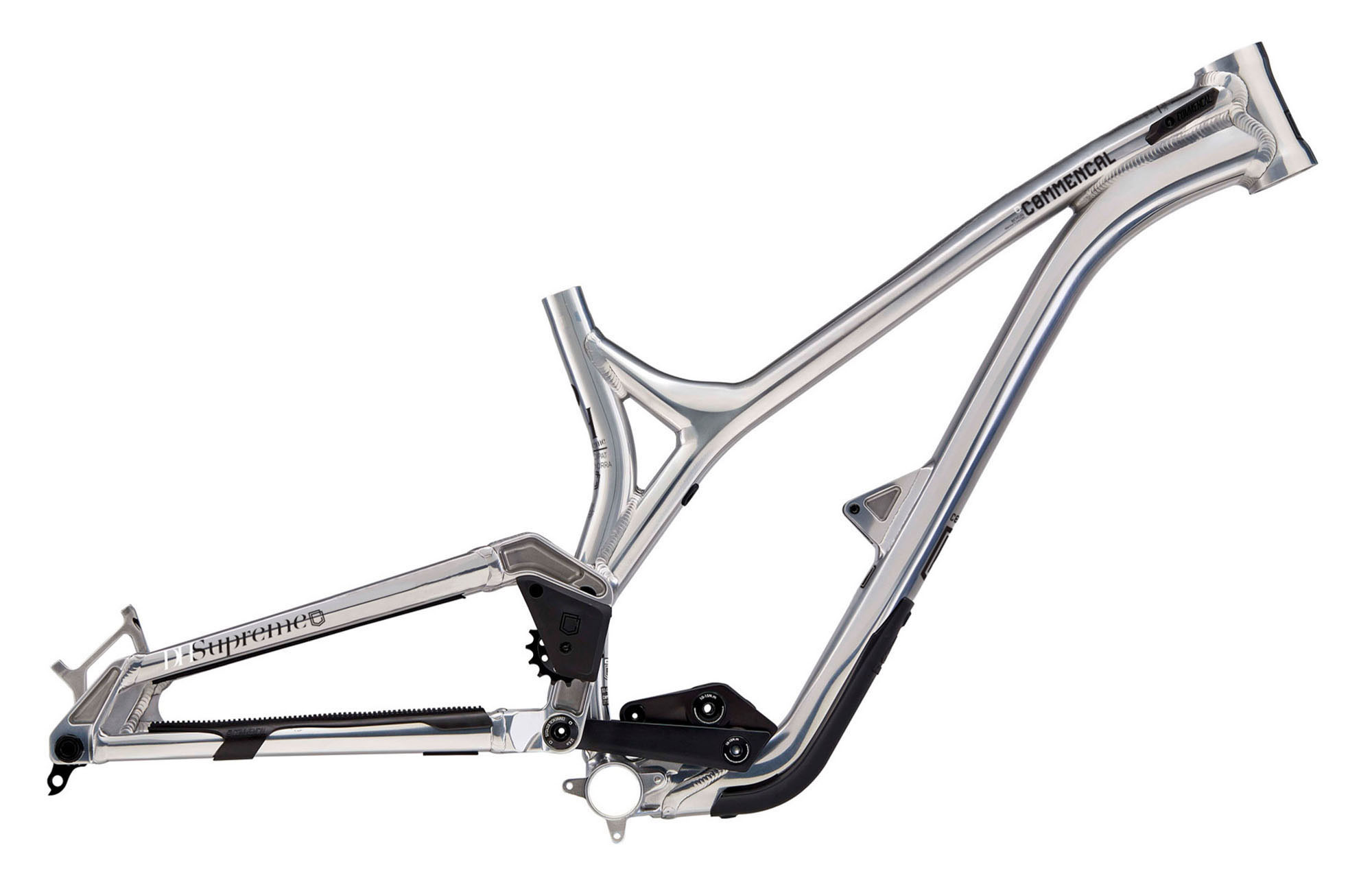

High Polished

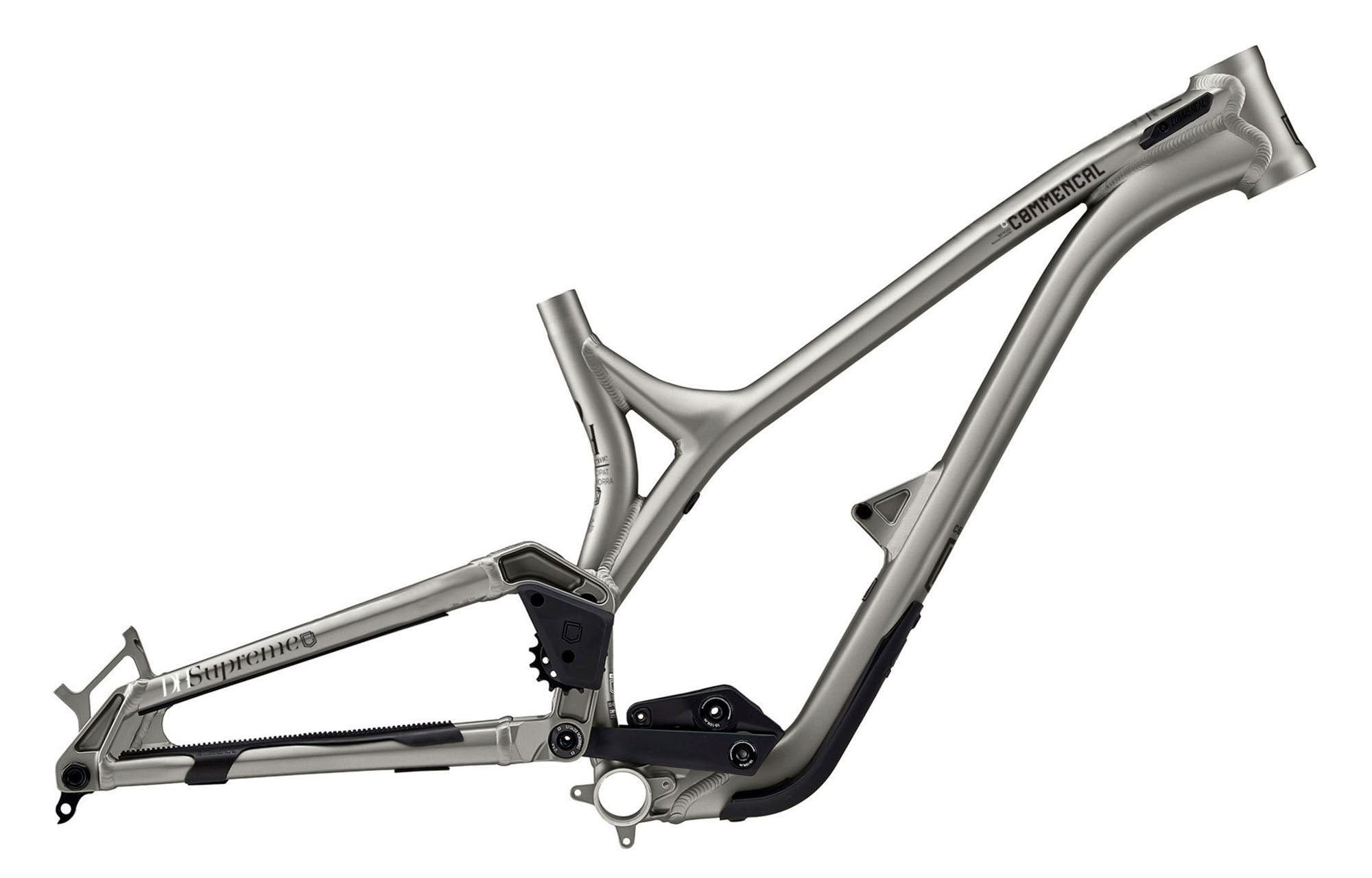

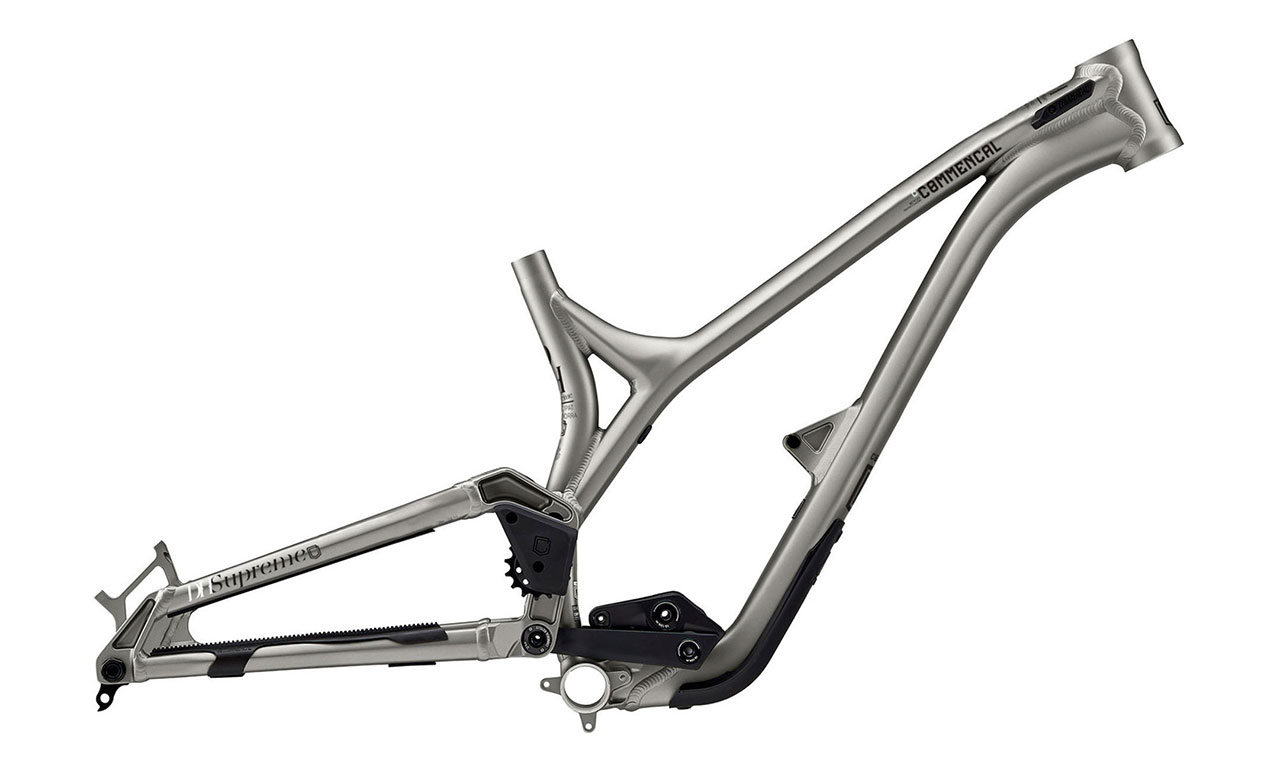

Silver Matte

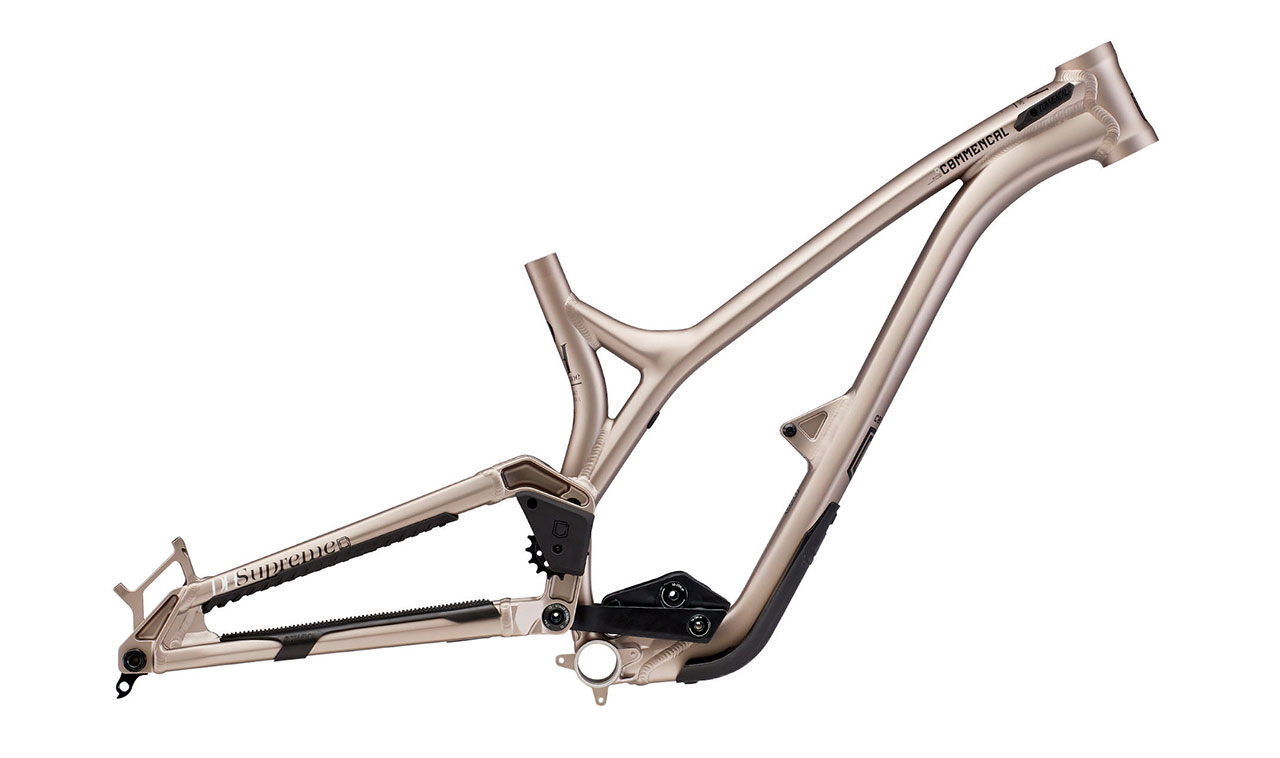

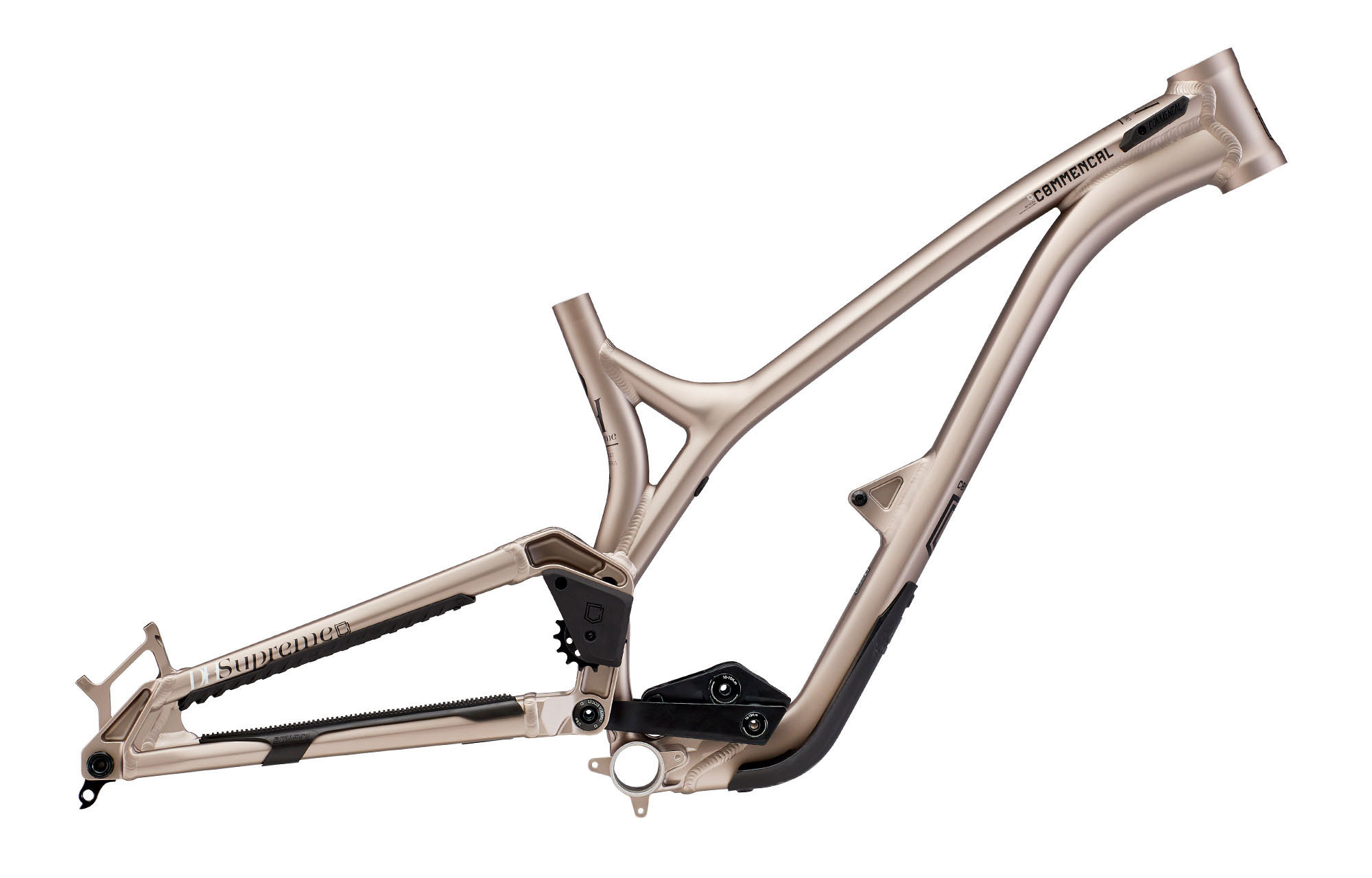

Champagne Matte

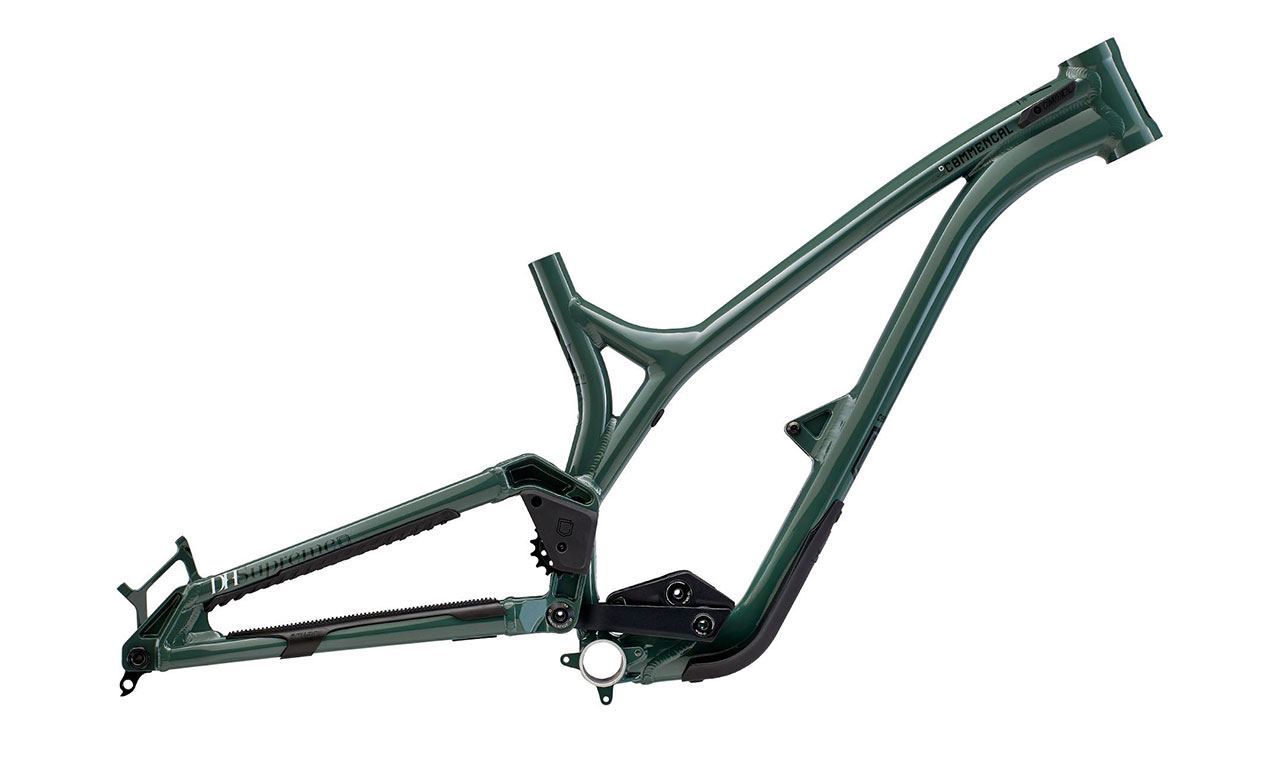

Keswick Green Shiny
S,M,L サイズ 全てマレットフレーム
GEOMETORY
| SIZE | ① SEAT TUBE LENGTH | ② SEAT TUBE ANGLE | ③ HEAD TUBE ANGLE | ④ HEAD TUBE LENGTH | ⑤ WHEEL BASE | ⑥ TOP TUBE LENGTH | ⑦ CHAIN STAY LENGTH | ⑧ BOTTOM BRACKET HEIGHT | ⑨ FORK LENGTH | ⑩ STANDOVER HEIGHT | ⑪ REACH | ⑫ STACK | Height adaptation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 400 | 65.5 | 62.7 | 112 | 1256 | 596 | 448 | -3 | 607 | - | 425 | 634 | 160~171 |
| M | 400 | 65.5 | 62.2 | 112 | 1290 | 614 | 456 | 2 | 607 | - | 455 | 631 | 170~181 |
| L | 400 | 65.5 | 62.2 | 112 | 1320 | 645 | 456 | 2 | 607 | - | 477 | 631 | 180~191 |
- 1SEAT TUBE LENGTH
- 2SEAT TUBE ANGLE
- 3HEAD TUBE ANGLE
- 4HEAD TUBE LENGTH
- 5WHEEL BASE
- 6TOP TUBE LENGTH
- 7CHAIN STAY LENGTH
- 8BOTTOM BRACKET HEIGHT
- 9FORK LENGTH
- 10STAND-OVER HEIGHT
- 11REACH
- 12STACK
