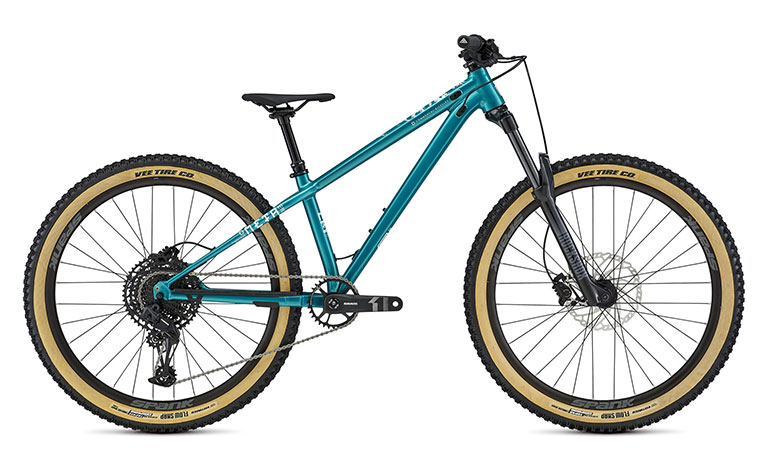

META HT JR
税込価格 ¥274,780（税抜価格 ¥249,800）完成車
サイズ：Jr
サイズ：Jr
Electroplate Lagoon
SPECIFICATIONS
| Frame | 2021 META HT JR |
| Fork | ROCKSHOX Recon Silver RL, 150mm |
| Headset | ACROS, Alloy cups ZS44/ZS56 |
| Stem | RIDE ALPHA Freeride, 40mm |
| Bar | RIDE ALPHA, 15mm rise, 760mm, 31.8mm |
| Grips | RIDE ALPHA, DH Grips, black |
| Brakes | SHIMANO MT501, 2 pistons, 203mm / 180mm |
| Shifters | SRAM SX Eagle, 12sp |
| Rear derailleur | SRAM SX Eagle, 12sp |
| Bottom Bracket | SRAM DUB BSA |
| Cranks | SRAM X1 1000 Eagle, 155mm |
| Chainring | SRAM X1 1000 Eagle, 32t |
| Chain | SRAM NX, 12sp |
| Cassette | SRAM SX Eagle, 12sp, 11-50t |
| Rims | SPANK Spoon 32, 26.7mm inner width |
| Hubs | FORMULA, sealed bearings |
| Spokes | SAPIM LEADER, 2.0 |
| Front Tire | VEE TIRE CO. FlowSnap 27.5x2.35, Top40, TR |
| Rear Tire | VEE TIRE CO. FlowSnap 27.5x2.35, Tackee, TR |
| Seatposts | KINDSCHOCK Ragei, 31.6mm |
| Saddle | COMMENCAL Jr |
| Accessories | Chainstay protector, seatstay protector |
| Colors | Electroplate Lagoon |
GEOMETORY
| SIZE | ① SEAT TUBE LENGTH | ② SEAT TUBE ANGLE | ③ HEAD TUBE ANGLE | ④ HEAD TUBE LENGTH | ⑤ WHEEL BASE | ⑥ TOP TUBE LENGTH | ⑦ CHAIN STAY LENGTH | ⑧ BOTTOM BRACKET HEIGHT | ⑨ FORK LENGTH | ⑩ STANDOVER HEIGHT | ⑪ REACH | ⑫ STACK | Height adaptation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JUNIOR | 340 | 73 | 65.5 | 105 | 1094 | 544 | 432 | -30 | 514 | 720 | 366 | 581 | 145~160 |
- 1SEAT TUBE LENGTH
- 2SEAT TUBE ANGLE
- 3HEAD TUBE ANGLE
- 4HEAD TUBE LENGTH
- 5WHEEL BASE
- 6TOP TUBE LENGTH
- 7CHAIN STAY LENGTH
- 8BOTTOM BRACKET HEIGHT
- 9FORK LENGTH
- 10STAND-OVER HEIGHT
- 11REACH
- 12STACK
