  4. META V5 ESSENTIAL

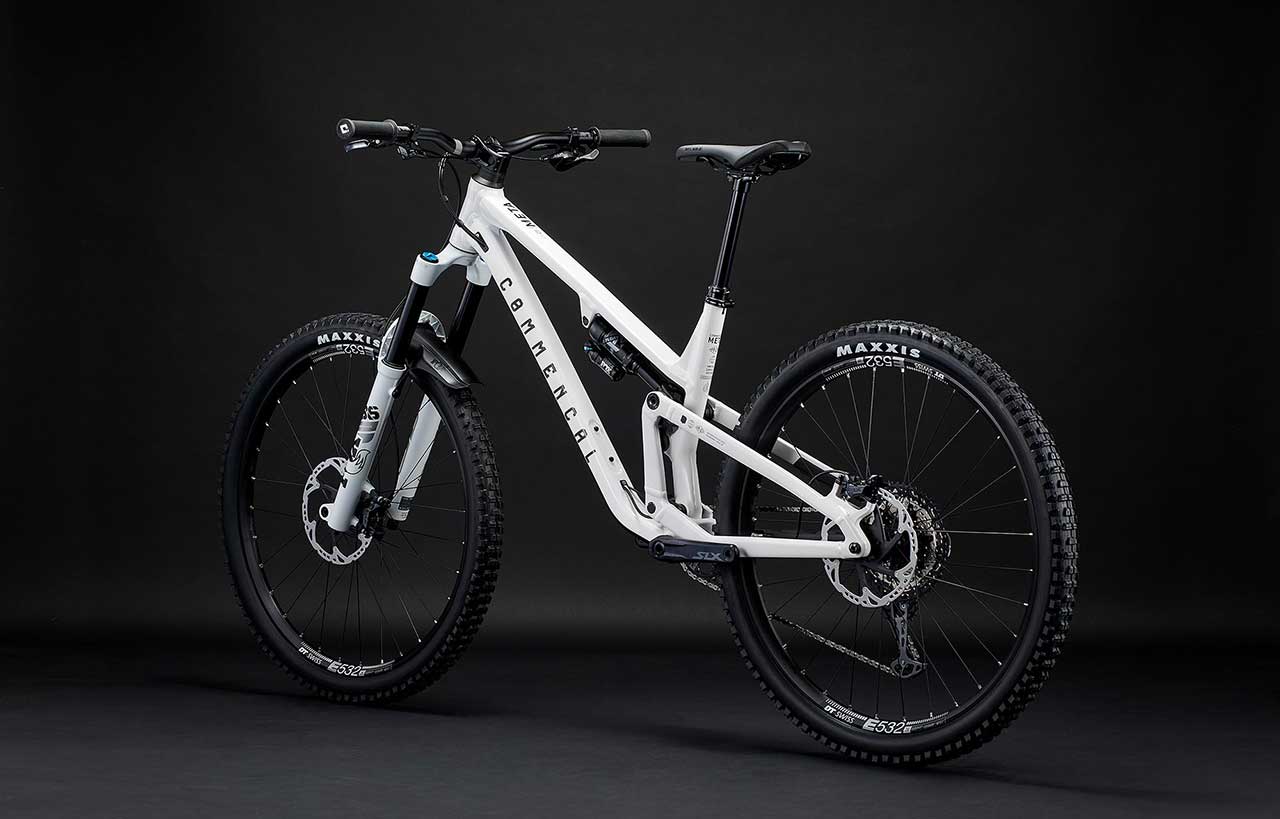

META V5

META V5 ESSENTIAL

税込価格 ¥1.100,000（税抜価格 ¥1,000,000）完成車
サイズ：S, M, L
NEW FRAME
PURE WHITE

PURE WHITE

PURE WHITE

PURE WHITE

PURE WHITE

PURE WHITE

PURE WHITE

PURE WHITE

PURE WHITE

PURE WHITE

PURE WHITE

Next
Prev
PURE WHITE サムネイル
PURE WHITE サムネイル
PURE WHITE サムネイル
PURE WHITE サムネイル
PURE WHITE サムネイル
PURE WHITE サムネイル
PURE WHITE サムネイル
PURE WHITE サムネイル
PURE WHITE サムネイル
PURE WHITE サムネイル

SPECS

Frame META V5, 150 mm travel
29", Alloy 6066, triple butted tubes, T4, T6
Shock FOX Float X Performance
210 x 55 mm, 2-pos lever, rebound
Fork FOX 36 Performance, 160 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token
Headset ACROS ZS56 / ZS56
Alloy cups, sealed bearings
Stem RIDE ALPHA 40
40 mm extension, 31,8 mm
Bar RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips ODI Longneck
Soft compound, single clamp, black
Brakes SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotor: SHIMANO SM-RT86 203 mm, 6 holes
Shifters SHIMANO SLX
12s
CHAIN GUIDERIDE RIDE ALPHA
32t-34t
Rear derailleur SHIMANO SLX
12s
Bottom Bracket SHIMANO BB71
Pressfit
Cranks SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + Technology
Chain SHIMANO SLX
12s
Cassette SHIMANO SLX
12s, 10-51t
Rims DT SWISS E 532
29", 32h, 30 mm inner width
Hubs Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, Micro Spline - Front: 32h, sealed bearings
Spokes SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
Front Tire MAXXIS DHR II
29"x2.40" WT, EXO, Dual, Tubeless Ready
Rear Tire MAXXIS DHR II
29"x2.40" WT, EXO, Tubeless Ready
Seatposts KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote
Saddle SDG Bel Air V3
Steel Rails
Weight 15,8 kg / 34.83 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Accessories Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
Sizes S, M, L
Colors PURE WHITE

GEOMETORY

SIZE ① SEAT TUBE LENGTH ② SEAT TUBE ANGLE ③ HEAD TUBE ANGLE ④ HEAD TUBE LENGTH ⑤ WHEEL BASE ⑥ TOP TUBE LENGTH ⑦ CHAIN STAY LENGTH ⑧ BOTTOM BRACKET HEIGHT ⑨ FORK LENGTH ⑩ STANDOVER HEIGHT ⑪ REACH ⑫ STACK Height adaptation
S Low 380 77.7 64.1 120 1215 572.9 436.8 -25.7 571   435.4 626.3 158~170cm
S High 380 78.2 64.5 120 1214 571.6 435 -20 571   440 628.8 158~170cm
M Low 420 77.8 64.1 125 1237 593.9 436.8 -25.8 571   455.4 630.8 168~180cm
M High 420 78.2 64.5 125 1236 592.6 435 -20 571   460 633.3 168~180cm
L Low 440 77.8 64.1 130 1271 614.8 441.8 -25.8 571   475.5 635.4 178~190cm
L High 440 78.2 64.5 130 1270 613.5 440 -20 571   480 637.8 178~190cm
  1. 1SEAT TUBE LENGTH
  2. 2SEAT TUBE ANGLE
  3. 3HEAD TUBE ANGLE
  4. 4HEAD TUBE LENGTH
  5. 5WHEEL BASE
  6. 6TOP TUBE LENGTH
  7. 7CHAIN STAY LENGTH
  8. 8BOTTOM BRACKET HEIGHT
  9. 9FORK LENGTH
  10. 10STAND-OVER HEIGHT
  11. 11REACH
  12. 12STACK
